The Element Puzzle
by EssGee

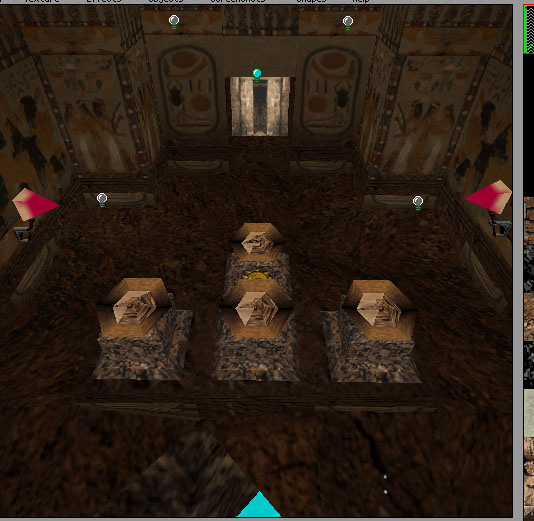

Element Puzzle is a single slot in the wad. Different OCBs must be entered to create the four different versions of the puzzle. In the original TR4 Mastabas (joby4a) project four ELEMENT_PUZZLE items are placed to create the setup to open a door. The Mastabas level setup is described here.

All items required can be found in the TR4 Mastabas level (joby4a.tr4 on the TRLR CD). Use WadMerger to add items to your wad.

The Puzzle

There are three visible ELEMENT_PUZZLE items, each one with a different symbol. The first one is blue waves and is referred to as water. Just fill your waterskin and pour the water onto the basin.

The second one is a yellow sun and is referred to as fire. When you've got the jerrycan, pour the petrol onto the basin, then light your torch and make the petrol burn.

The third one is a brown triangle, referred to as earth. Just use the bag of sand in front on this one.

The fourth one is an invisible object that is used to trigger the opening of the door. The three visible element puzzles combine to trigger this fourth element puzzle, which in turn, opens the door.

Objects Needed

ELEMENT_PUZZLE
PICKUP_ITEM1 : bag of sand
PICKUP_ITEM2 : jerrycan
BURNING_TORCH_ITEM
WATERSKIN1_EMPTY, WATERSKIN1_1, WATERSKIN1_2, WATERSKIN1_3 and/or WATERSKIN2_EMPTY, WATERSKIN2_1, WATERSKIN2_2, WATERSKIN2_3, WATERSKIN2_4, WATERSKIN2_5
LARA_WATER_MESH
LARA_DIRT_MESH
LARA PETROL_MESH
TORCH_ANIM

Only WATERSKIN1_EMPTY, WATERSKIN1_3 items are required if you want to make a simpler puzzle of find water, fill waterskin and fill puzzle hole. Other waterskin objects are required if you want to make a �juggling of water levels� puzzle.

Setting up the Puzzle

Required Script entries
Pickup= 1, Bag of Sand, $0000,$0400,$0000,$2000,$1000,$8002
Pickup= 2, Jerrycan, $0015,$0500,$4000,$f000,$0000,$4002

Add all the necessary items in your map (bag of sand, jerrycan, waterskin, burning_torch_item, available fire source).

Add  four  ELEMENT_PUZZLE  in your map with following OCBs :
Water = 0
Fire = 1
Earth = 2
Invisible = 3

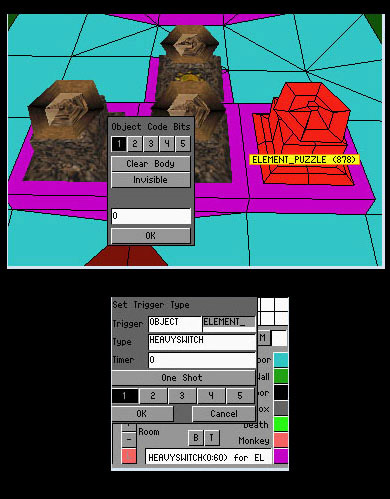

1^st Element Puzzle
Element Puzzle object - codebits - press 1, OCB = 0
Under Puzzle piece, Place Heavyswitch trigger for 4^th  Element Puzzle, with Trigger bit 1 pressed

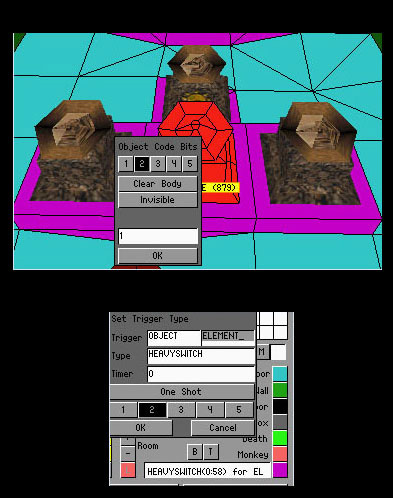

2nd Element Puzzle
Element Puzzle object - codebits - press 2, OCB = 1
Under Puzzle piece, Place Heavyswitch trigger for 4^th Element Puzzle, with Trigger bit 2 pressed

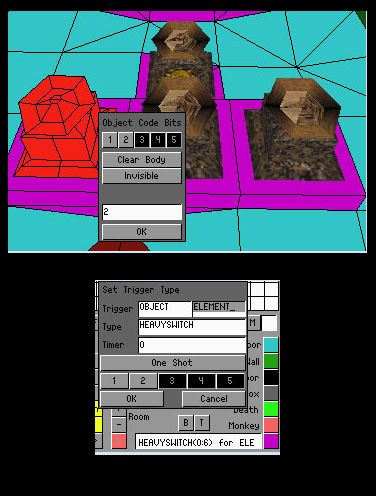

3rd Element Puzzle
Element Puzzle object - codebits - press 3,4,5, OCB = 2
Under Puzzle piece, Place Heavyswitch trigger for 4^th Element Puzzle, with Trigger bits 3,4,5 pressed

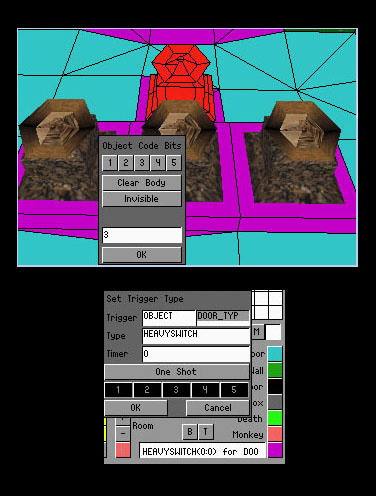

4th Element Puzzle
Element Puzzle object - OCB = 3
Under Puzzle piece, Place Heavyswitch trigger for Door Type, with all Trigger bits pressed

Variations of the puzzle
You can use less than 3 ELEMENT_PUZZLE items (for instance as in Bedazzled's Temple of the Stone where only the water part is used). When you place your triggers, don't forget that you should have ticked all Code Bit and Trigger bits when the ELEMENT_PUZZLE puzzle is complete.

Known Bugs
There have been reported bugs of savegames failing on reload when using the torch and then saving before the puzzle is completed. For TRNG users, apparently this bug has been fixed. I have tested this setup in NGLE with TRep, and the savegames appear to work correctly.
